| 產品 |
型號標題 |
功率 |
輸入
電壓 |
輸出
電壓 |
輸出
路數(shù) |
效率
% |
PFC |
尺寸 |
安規(guī)認證 |
技術
手冊 |
樣品
申請 |
 |
PS01-XXDXX |
1W |
,4.5~9VDC,9~18VDC,18~36VDC,36~75VDC, |
±5V ,±12V ,±24V ,±3.3V |
2 |
84% |
|
22.00*9.50*12.00mm |
|
 |
 |
 |

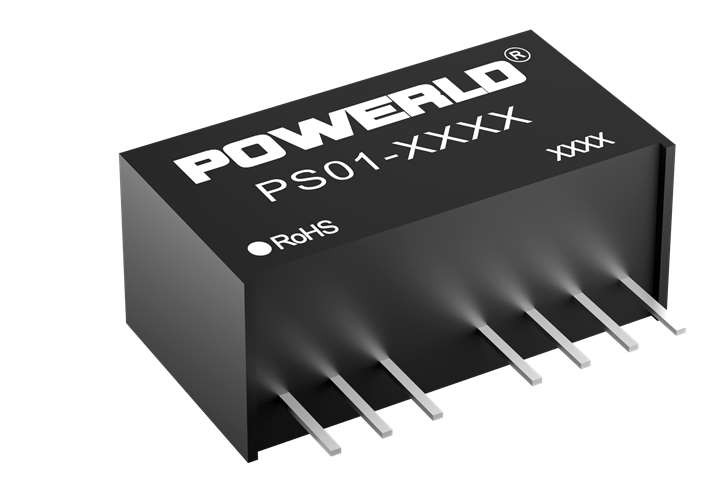

PS01-XXXX |
1W |
,4.5~9VDC,9~18VDC,18~36VDC,36~75VDC, |
3.3V ,5V ,12V ,24V |
1 |
84% |
|
22.00*9.50*12.00mm |
|
|
|
 |

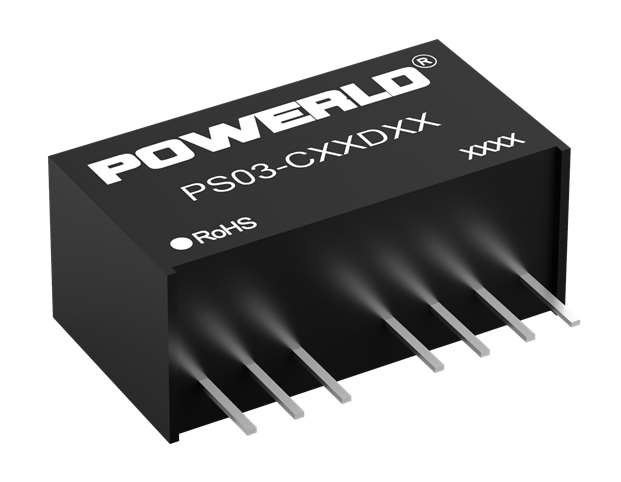

PS03-CXXDXX |
3W |
,4.5~9VDC,9~18VDC,18~36VDC,36~75VDC, |
±5V ,±12V ,±15V ,±24V |
2 |
81% |
|
22.00*9.50*12.00mm |
|
|
|
 |

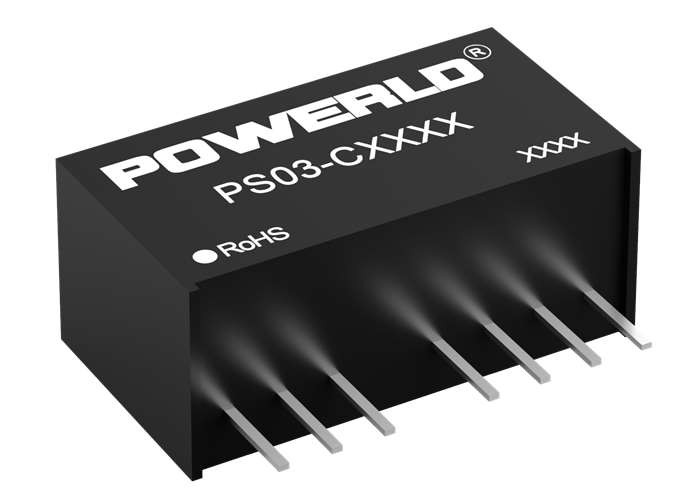

PS03-CXXXX |
3W |
,4.5~9VDC,9~18VDC,18~36VDC,36~75VDC, |
3.3V ,5V ,12V ,15V ,24V |
1 |
83% |
|
22.00*9.50*12.00mm |
|
|
|
 |

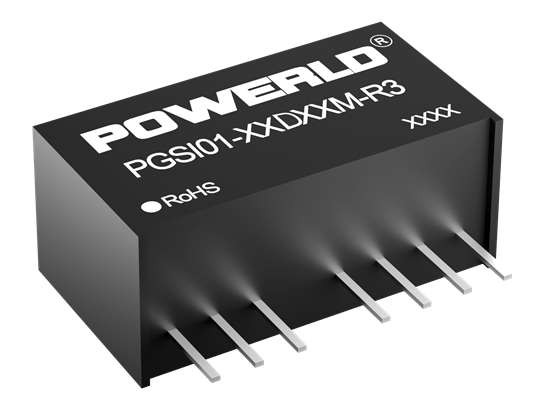

PGSI01-XXDXXM-R3 |
1W |
,4.5~9VDC,9~18VDC,18~36VDC,36~75VDC, |
±5V ,±12V ,±15V ,±9V ,±24V |
2 |
82% |
|
22.00*9.50*12.00mm |
|
|
|
 |

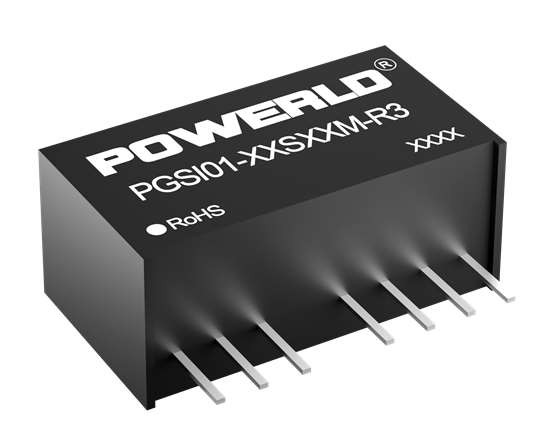

PGSI01-XXSXXM-R3 |
1W |
,4.5~9VDC,9~18VDC,18~36VDC,36~75VDC, |
3.3V ,5V ,9V ,12V ,15V ,24V |
1 |
82% |
|
22.00*9.50*12.00mm |
|
|
|
